Couleur du cadre |
electric red metallic*; lunar grey metallic*; pearl white* |
Fourche suspendue |
Suntour Aion, Air, tapered, 100mm; Suntour XCR32 27,5″, Air, tapered, black* |
Jeu de direction |
Acros IntegrationX, block lock |
Tige de selle |
Cane Creek New Thudbuster ST |
Collier de selle |
Kalloy SC-201, 40,0 mm |
Pneus |
Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Big Ben Plus 55-559 Reflex*; Schwalbe Johnny Watts 60-584*; Schwalbe Smart Sam Plus 57-559 Reflex* |
Chambres |
Schwalbe AV21; Schwalbe AV13* |
Jantes |
Rodi Tryp35 27,5″; Alex MD30 26″* |
Moyeu avant |
Novatec Disc 32H |
Moyeu arrière |
Enviolo 380, 36H |
Batterie |
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 16.7 Ah/625Wh* |
Moteur |
Performance Line Speed (Gen4) |

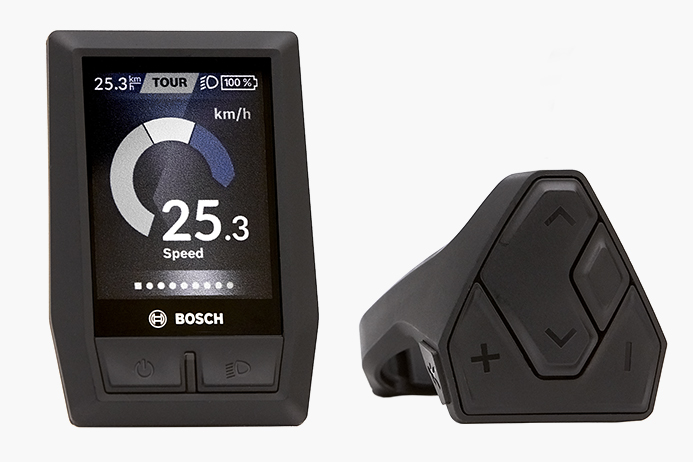

Display |
Bosch Intuvia; Bosch Kiox*; Bosch Nyon* (only available in Europe)* |
Pédalier |
FSA/Riese & Müller, 170 mm |
Plateau |
55T, for Gates drive belt CDX |
Protection chaine |
Riemenschutzring |
Chaine |
|
Pignon |
24T, for Gates drive belt CDX |
Selle |
Selle Royal New Lookin Moderate Male |
Pédales |
VP-183; VP-538* |
Manettes |
Enviolo grip shift, continuous |
Cintre |
Humpert ergotec Ergo XXL, 31,8 mm; Satori R&M Custom, 25,4mm, Alu* |
Potence |
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu* |
Poignées |
Ergon ergonomic; Ergon GP3-L* |
Freins |
Magura MT4, disc brake; Magura MT5, disc brake |
Éclairage avant |
Supernova M99 |
Éclairage arrière |
Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
|
Leviers de freins |
SKS A69R; SKS A65R* |
Porte-bagages |
Riese & Müller, MIK |
Élastique |
Bibia |
Sonnette |
Supernova horn |
Béquille |
Ursus R78 King 2 Kickstand |
Antivol |
ABUS Shield |
Miroir |
Humpert ergotec M-99 E4, CNC |
RX Hardware |
RX Chip (für RX Services)*
|
Taille du cadre [cm] |
43 cm (26″)*; 47 cm (27,5″)*; 51 cm (27,5″)*; 56 cm (27,5″)* |
